Vertex animation

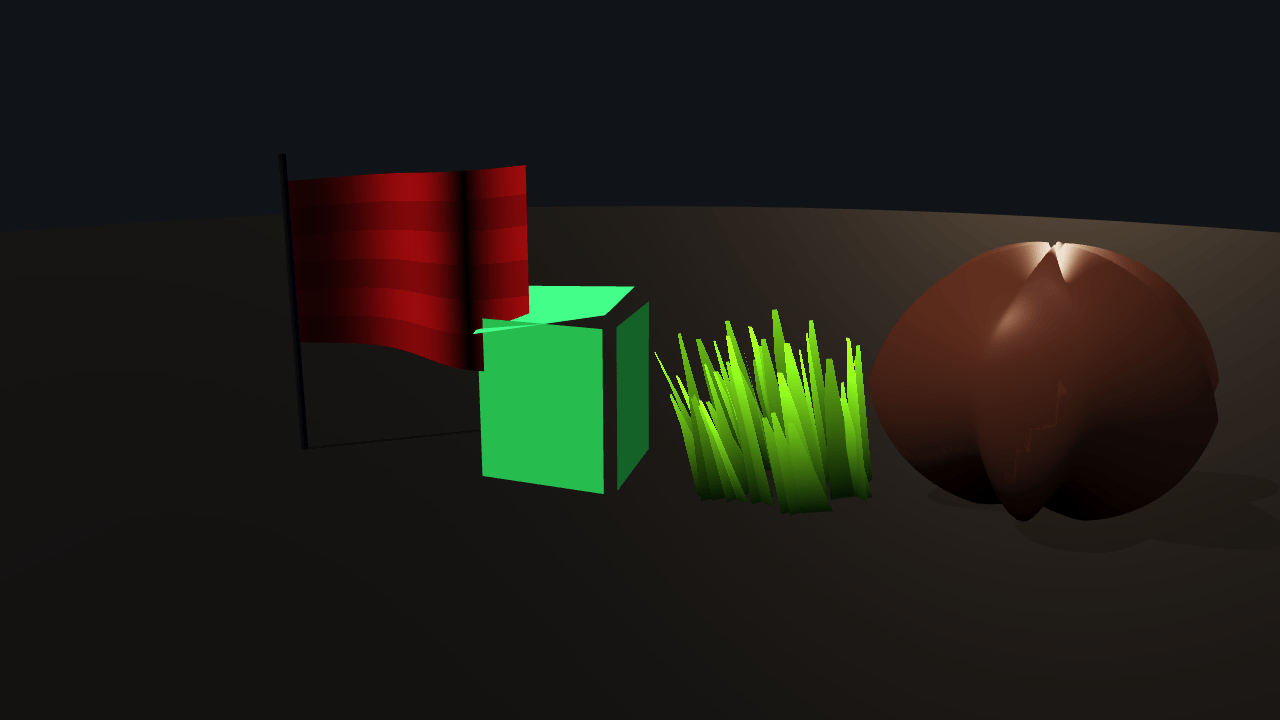

/** * The stage the four subjects stand on, and where each of them stands. * * @remarks * Split out of `main.ts` for the reason `pbr-model/shot.ts` is: a lamp intensity and a lane position * are numbers found by looking at rendered candidates, and none of them is a lesson about vertex * animation. What is left in `main.ts` is the four shader loads, the materials built from them, the * phase that keeps a stopped clock honest, and the panel. */import { createMaterialAsset, Environment, MeshAsset, MeshRenderer, pbrMaterialDefinition } from "ignifx";import { backdropFade, backdropMaxDistance } from "../_kit/backdrop.ts";import { createBackdrop, createStudioFloor, createStudioRig, loadEnvironment } from "../_kit/stage.ts";import { createFlagMesh, createGrassMesh } from "./meshes.ts";import type { App, AssetHandle, ColorLike, MaterialAsset } from "ignifx";/** * Where the four subjects stand, in metres along X. * * @remarks * The sphere stands well clear of the tuft. Its bulge pushes lobes about 0.6 m out from its * centre, and the tuft's blades reach about 0.3 m from theirs and lean further in the wind: any * nearer and the blades pierce the lobes in every frame. */export const LANE = { flag: -1.5, jelly: -0.05, grass: 0.72, sphere: 1.8 } as const;/** The flag's cloth, in metres: how far it reaches from the pole, and how tall it is. */export const FLAG = { width: 0.95, height: 0.6 } as const;/** * The phase written into every animated shader under `?static=1`, in seconds. * * @remarks * Any non-zero value would do; this one was chosen because it catches the flag mid-swing rather * than at either end of its travel, which is the pose that reads as cloth in a still image. */export const STATIC_PHASE = 1.7;/** The near-black the frame is cleared to; the backdrop sphere covers it everywhere. */export const CLEAR_COLOR: ColorLike = { r: 0.012, g: 0.015, b: 0.022, a: 1 };/** The wind the example opens on. */export const WIND = { strength: 0.24, frequency: 2.4 } as const;/** How wide the backdrop sphere is, in metres. */const BACKDROP_DIAMETER = 18;/** The opening shot, aimed at the middle of the row. */export const SHOT = {  fov: 36,  yaw: 8,  pitch: 14,  distance: 4.6,  /**   * How far back the shot opens on a portrait canvas. The orbit camera keeps a square frame's   * width there, which is narrower than the landscape frame this row was composed in, so the row   * would lose the flag and the sphere off its two ends; from here it fits, still inside the   * backdrop.   */  portraitDistance: 6.6,  target: { x: 0.35, y: 0.42, z: 0 },  maxDistance: backdropMaxDistance(BACKDROP_DIAMETER),} as const;/** The materials {@link placeSubjects} hangs on the four meshes. */export interface SubjectMaterials {  /** The flag's `"shader"` material. */  readonly flag: AssetHandle<MaterialAsset> | null;  /** The jelly cube's `"shader"` material. */  readonly jelly: AssetHandle<MaterialAsset> | null;  /** The grass tuft's `"shader"` material. */  readonly grass: AssetHandle<MaterialAsset> | null;  /** The sphere's PBR material, with `bulge.surface.wgsl` layered onto it. */  readonly sphere: AssetHandle<MaterialAsset>;}/** * Builds the lighting, the studio probe, the floor and the backdrop, and the metal pole the flag * hangs from. * * @remarks * The probe does two jobs. It lights the PBR sphere, and it is what the three custom materials read * as `ambientColor`; without one that is zero, and the side of the cloth the key light misses * renders black. * * @param app - The app the entities and the assets belong to. * @returns Nothing; the entities are the world's. */export async function createStage(app: App): Promise<void> {  createStudioRig(app, { focus: SHOT.target, keyIntensity: 2.9, rimIntensity: 0.8 });  await createBackdrop(app, { diameter: BACKDROP_DIAMETER });  const environment = loadEnvironment(app, "studio");  await environment.promise;  const sky = app.world.createEntity("Environment").addComponent(Environment, { environment });  sky.imageProcessing.toneMapping = "aces";  createStudioFloor(app, { size: 20, color: CLEAR_COLOR, fade: backdropFade(BACKDROP_DIAMETER, 5) });  const pole = app.world.createEntity("Pole");  pole.transform.localPosition.set(LANE.flag, 0.56, 0);  pole.addComponent(MeshRenderer, {    mesh: MeshAsset.cylinder(app, { diameter: 0.028, height: 1.12 }),    materials: [      createMaterialAsset(        app,        pbrMaterialDefinition({          name: "vertex-animation/pole",          baseColor: { r: 0.5, g: 0.52, b: 0.56, a: 1 },          metallic: 0.8,          roughness: 0.32,        }),        [],      ),    ],    // A 28 mm pole's shadow is a hairline at best, so it is not worth a caster.    castShadows: false,  });}/** * Places the flag, the jelly cube, the grass tuft and the bulged sphere. * * @remarks * The three animated subjects declare `castShadows: false` on purpose and not by omission: the * studio rig's shadow map is ESM, and Babylon Lite cannot draw a `"shader"` material into an ESM * map, so the engine would leave them out and warn (`IGX-0724`). The sphere, whose displacement * happens inside the engine's own PBR vertex stage, casts and receives normally. * * @param app - The app the entities and the assets belong to. * @param materials - The four materials, already built. * @param random - The kit's seeded generator, so the same seed grows the same tuft. */export function placeSubjects(app: App, materials: SubjectMaterials, random: () => number): void {  const flag = app.world.createEntity("Flag");  flag.transform.localPosition.set(LANE.flag, 0.42, 0);  flag.addComponent(MeshRenderer, {    mesh: createFlagMesh(app, FLAG.width, FLAG.height, 28, 8),    materials: [materials.flag],    castShadows: false,    receiveShadows: false,  });  const jelly = app.world.createEntity("Jelly");  jelly.transform.localPosition.set(LANE.jelly, 0.3, 0);  jelly.addComponent(MeshRenderer, {    mesh: MeshAsset.box(app, { size: 0.5 }),    materials: [materials.jelly],    castShadows: false,    receiveShadows: false,  });  const grass = app.world.createEntity("Grass");  grass.transform.localPosition.set(LANE.grass, 0, 0);  grass.addComponent(MeshRenderer, {    mesh: createGrassMesh(app, 44, 0.3, random),    materials: [materials.grass],    castShadows: false,    receiveShadows: false,  });  const sphere = app.world.createEntity("Bulged sphere");  sphere.transform.localPosition.set(LANE.sphere, 0.42, 0);  sphere.addComponent(MeshRenderer, {    mesh: MeshAsset.sphere(app, { diameter: 0.72, segments: 48 }),    materials: [materials.sphere],    castShadows: true,    receiveShadows: true,  });}

/** * The two meshes this example builds in code, because both of them are *about* their vertices. * * @remarks * `MeshAsset.plane` is one quad and `MeshAsset.ground` lies in XZ, and a flag needs a grid that * stands up with a UV running from the hoist to the fly. `MeshAsset.fromData` takes the three * arrays a mesh actually is — positions, normals, indices — plus the UVs, and publishes them as an * asset like any primitive factory. * * The UV layout is the contract with the shaders beside this file, so it is written down here and * nowhere else: **`uv.x` runs from the anchored edge to the free one, and `uv.y` runs from the root * to the tip.** `flag.wgsl` multiplies its wave by `uv.x`, which pins the hoist; `grass.wgsl` * squares `uv.y`, which plants the root and tightens the bend towards the top. */import { MeshAsset } from "ignifx";import type { App, AssetHandle } from "ignifx";/** How many floats a position or a normal holds. */const VECTOR3 = 3;/** * Builds a subdivided quad standing in the XY plane, facing `+Z`, with its anchored edge at `x = 0`. * * @param app - The app whose engine uploads the geometry. * @param width - How far the cloth reaches from the pole, in metres. * @param height - How tall it is, in metres. * @param columns - Quads along the length. The wave's smoothness is this number. * @param rows - Quads up the height. * @returns The handle, with one holder — the caller. */export function createFlagMesh(  app: App,  width: number,  height: number,  columns: number,  rows: number,): AssetHandle<MeshAsset> {  const vertices = (columns + 1) * (rows + 1);  const positions = new Float32Array(vertices * VECTOR3);  const normals = new Float32Array(vertices * VECTOR3);  const uvs = new Float32Array(vertices * 2);  const indices = new Uint32Array(columns * rows * 6);  for (let row = 0; row <= rows; row += 1) {    for (let column = 0; column <= columns; column += 1) {      const index = row * (columns + 1) + column;      const u = column / columns;      const v = row / rows;      positions[index * VECTOR3] = u * width;      positions[index * VECTOR3 + 1] = v * height;      positions[index * VECTOR3 + 2] = 0;      normals[index * VECTOR3 + 2] = 1;      uvs[index * 2] = u;      uvs[index * 2 + 1] = v;    }  }  let cursor = 0;  for (let row = 0; row < rows; row += 1) {    for (let column = 0; column < columns; column += 1) {      const a = row * (columns + 1) + column;      const b = a + 1;      const c = a + columns + 1;      const d = c + 1;      indices[cursor] = a;      indices[cursor + 1] = c;      indices[cursor + 2] = b;      indices[cursor + 3] = b;      indices[cursor + 4] = c;      indices[cursor + 5] = d;      cursor += 6;    }  }  return MeshAsset.fromData(app, "vertex-animation/flag", { positions, normals, indices, uvs });}/** * Builds a tuft of grass blades: one quad each, scattered in a disc and turned to face any which * way, with `uv.y` running from root to tip. * * @remarks * One mesh, one draw call, and every blade bends on its own because `grass.wgsl` hashes the blade's * **world** position into the gust term. Real foliage at scale goes through `InstancedMeshRenderer` * or `TerrainScatter`; a tuft is small enough that one baked mesh is the honest answer. * * @param app - The app whose engine uploads the geometry. * @param blades - How many blades the tuft holds. * @param radius - The disc the roots are scattered over, in metres. * @param random - The kit's seeded generator, so the same seed grows the same tuft. * @returns The handle, with one holder — the caller. */export function createGrassMesh(  app: App,  blades: number,  radius: number,  random: () => number,): AssetHandle<MeshAsset> {  const positions = new Float32Array(blades * 4 * VECTOR3);  const normals = new Float32Array(blades * 4 * VECTOR3);  const uvs = new Float32Array(blades * 4 * 2);  const indices = new Uint32Array(blades * 6);  for (let blade = 0; blade < blades; blade += 1) {    const angle = random() * Math.PI * 2;    const distance = Math.sqrt(random()) * radius;    const rootX = Math.cos(angle) * distance;    const rootZ = Math.sin(angle) * distance;    const yaw = random() * Math.PI;    const halfWidth = 0.055;    const height = 0.3 + random() * 0.28;    // The blade lies in the plane its yaw turns it into, so a tuft has depth from every angle.    const dx = Math.cos(yaw) * halfWidth;    const dz = Math.sin(yaw) * halfWidth;    const corners: readonly (readonly [number, number, number, number, number])[] = [      [rootX - dx, 0, rootZ - dz, 0, 0],      [rootX + dx, 0, rootZ + dz, 1, 0],      [rootX - dx, height, rootZ - dz, 0, 1],      [rootX + dx, height, rootZ + dz, 1, 1],    ];    for (let corner = 0; corner < 4; corner += 1) {      const source = corners[corner] ?? [0, 0, 0, 0, 0];      const index = blade * 4 + corner;      positions[index * VECTOR3] = source[0];      positions[index * VECTOR3 + 1] = source[1];      positions[index * VECTOR3 + 2] = source[2];      // The quad's own normal, so `grass.wgsl`'s lambert term has a direction to work with.      normals[index * VECTOR3] = -Math.sin(yaw);      normals[index * VECTOR3 + 2] = Math.cos(yaw);      uvs[index * 2] = source[3];      uvs[index * 2 + 1] = source[4];    }    const base = blade * 4;    indices.set([base, base + 2, base + 1, base + 1, base + 2, base + 3], blade * 6);  }  return MeshAsset.fromData(app, "vertex-animation/grass", { positions, normals, indices, uvs });}

// A flag: a subdivided plane whose vertex stage bends it into a travelling wave, pinned at u = 0.
// A full `"shader"` material owns its vertex stage outright, which is what makes this possible at
// all — a surface shader's `displace` hook cannot read the clock (see `bulge.surface.wgsl`).
// @ignifx shader
// @ignifx attributes position, normal, uv
// @ignifx system world, viewProjection, mainLightDirection, mainLightColor, ambientColor, time
// @ignifx uniform flagColor: vec3<f32> = color(0.85, 0.24, 0.28)
// @ignifx uniform wind: f32 = 0.22 range(0, 0.6) step(0.01) tooltip("How far the cloth swings, in metres.")
// @ignifx uniform frequency: f32 = 5 range(0.5, 12) step(0.25) tooltip("Waves along the flag.")
// @ignifx uniform span: f32 = 0.95 range(0.1, 4) tooltip("How far the cloth reaches from the pole, in metres.")
// @ignifx uniform phase: f32 = 0 tooltip("Added to time, so a stopped clock still shows a pose.")
// @ignifx blend opaque cull none

struct VertexOutput {
  @builtin(position) position: vec4<f32>,
  @location(0) normal: vec3<f32>,
  @location(1) uv: vec2<f32>,
}

@vertex fn mainVertex(input: VertexInput) -> VertexOutput {
  let t = shaderUniforms.time + shaderUniforms.phase;
  // `uv.x` is the distance from the pole, so multiplying by it pins the hoist and frees the fly.
  let u = input.uv.x;
  let travel = u * shaderUniforms.frequency - t * 3.2;
  let wave = sin(travel) * shaderUniforms.wind * u;
  let lift = cos(input.uv.y * 2.2 + t * 2.6) * shaderUniforms.wind * 0.35 * u;
  let local = input.position + vec3<f32>(0.0, lift, wave);
  // The cloth's real normal: the wave's slope along the flag, per metre rather than per unit of
  // `u`. The lift only moves the cloth up and down, which does not tilt it.
  let slope = shaderUniforms.wind * (cos(travel) * shaderUniforms.frequency * u + sin(travel)) / shaderUniforms.span;
  var out: VertexOutput;
  out.position = shaderSystem.viewProjection * shaderSystem.world * vec4<f32>(local, 1.0);
  out.normal = normalize((shaderSystem.world * vec4<f32>(-slope, 0.0, 1.0, 0.0)).xyz);
  out.uv = input.uv;
  return out;
}

@fragment fn mainFragment(input: VertexOutput) -> @location(0) vec4<f32> {
  // Two-sided, and wrapped: thin cloth passes light through, so neither face goes black.
  let lambert = abs(dot(normalize(input.normal), -normalize(shaderUniforms.mainLightDirection)));
  let wrapped = lambert * 0.75 + 0.25;
  let band = select(1.0, 0.82, fract(input.uv.y * 3.0) < 0.5);
  return vec4<f32>(shaderUniforms.flagColor * band * (shaderUniforms.ambientColor + shaderUniforms.mainLightColor * wrapped), 1.0);
}

// Jelly: a squash-and-stretch wobble driven entirely from the vertex stage, so one mesh and one
// material animate with no script, no skeleton and no per-frame CPU work at all.
// @ignifx shader
// @ignifx attributes position, normal
// @ignifx system world, viewProjection, mainLightDirection, mainLightColor, ambientColor, time
// @ignifx uniform jellyColor: vec3<f32> = color(0.36, 0.78, 0.55)
// @ignifx uniform wobble: f32 = 0.18 range(0, 0.5) step(0.01) tooltip("How far the cube deforms, as a fraction.")
// @ignifx uniform frequency: f32 = 3.4 range(0.5, 10) step(0.1) tooltip("Wobbles a second.")
// @ignifx uniform phase: f32 = 0 tooltip("Added to time, so a stopped clock still shows a pose.")
// @ignifx blend opaque cull back

struct VertexOutput {
  @builtin(position) position: vec4<f32>,
  @location(0) normal: vec3<f32>,
}

@vertex fn mainVertex(input: VertexInput) -> VertexOutput {
  let t = (shaderUniforms.time + shaderUniforms.phase) * shaderUniforms.frequency;
  // Squash on Y and stretch on XZ from the same term, so the volume stays roughly constant — which
  // is the difference between jelly and a cube that simply grows and shrinks.
  let squash = sin(t) * shaderUniforms.wobble;
  let scale = vec3<f32>(1.0 + squash * 0.5, 1.0 - squash, 1.0 + squash * 0.5);
  // A second, faster term along the diagonal makes the corners lag, which is what reads as soft.
  let lag = sin(t * 1.7 + input.position.x * 3.0 + input.position.z * 3.0) * shaderUniforms.wobble * 0.35;
  // Pushed out from the centre, not along the normal: a box's corner is three vertices with three
  // face normals, and moving each along its own would tear the edges open.
  let local = input.position * scale + normalize(input.position) * lag;
  var out: VertexOutput;
  out.position = shaderSystem.viewProjection * shaderSystem.world * vec4<f32>(local, 1.0);
  out.normal = normalize((shaderSystem.world * vec4<f32>(input.normal / scale, 0.0)).xyz);
  return out;
}

@fragment fn mainFragment(input: VertexOutput) -> @location(0) vec4<f32> {
  let normal = normalize(input.normal);
  let lambert = clamp(dot(normal, -normalize(shaderUniforms.mainLightDirection)), 0.0, 1.0);
  let wrapped = lambert * 0.75 + 0.25;
  return vec4<f32>(shaderUniforms.jellyColor * (shaderUniforms.ambientColor + shaderUniforms.mainLightColor * wrapped), 1.0);
}

// Wind-blown grass: cross quads bent from the vertex stage and alpha-tested in the fragment stage,
// which is how a foliage card is drawn everywhere. `mainLightDirection` and `ambientColor` are
// ignifx's own uniforms, so a full `"shader"` material can still be lit by the scene's key light.
// @ignifx shader
// @ignifx attributes position, normal, uv
// @ignifx system world, viewProjection, mainLightDirection, mainLightColor, ambientColor, time
// @ignifx uniform tipColor: vec3<f32> = color(0.62, 0.82, 0.32)
// @ignifx uniform rootColor: vec3<f32> = color(0.14, 0.28, 0.11)
// @ignifx uniform wind: f32 = 0.28 range(0, 1) step(0.01) tooltip("How far the tips lean, in metres.")
// @ignifx uniform frequency: f32 = 1.6 range(0.2, 6) step(0.1) tooltip("Gusts a second.")
// @ignifx uniform phase: f32 = 0 tooltip("Added to time, so a stopped clock still shows a pose.")
// @ignifx blend opaque cull none

struct VertexOutput {
  @builtin(position) position: vec4<f32>,
  @location(0) normal: vec3<f32>,
  @location(1) uv: vec2<f32>,
}

@vertex fn mainVertex(input: VertexInput) -> VertexOutput {
  let world = shaderSystem.world * vec4<f32>(input.position, 1.0);
  let t = (shaderUniforms.time + shaderUniforms.phase) * shaderUniforms.frequency;
  // `uv.y` is 0 at the root and 1 at the tip; squaring it is what makes the blade bend rather than
  // shear — the root stays planted and the curve tightens towards the top.
  let bend = input.uv.y * input.uv.y * shaderUniforms.wind;
  let gust = sin(t + world.x * 2.4 + world.z * 1.7) * 0.7 + sin(t * 2.3 + world.z * 3.1) * 0.3;
  var out: VertexOutput;
  out.position = shaderSystem.viewProjection * (world + vec4<f32>(gust * bend, 0.0, gust * bend * 0.4, 0.0));
  out.normal = normalize((shaderSystem.world * vec4<f32>(input.normal, 0.0)).xyz);
  out.uv = input.uv;
  return out;
}

@fragment fn mainFragment(input: VertexOutput) -> @location(0) vec4<f32> {
  // The alpha test: the blade is a tapering wedge cut out of a rectangular quad, and everything
  // outside it is discarded rather than blended, so no sorting is needed.
  let halfWidth = 0.5 * (1.0 - input.uv.y * 0.85);
  if (abs(input.uv.x - 0.5) > halfWidth) { discard; }
  let lambert = clamp(abs(dot(normalize(input.normal), -normalize(shaderUniforms.mainLightDirection))), 0.0, 1.0);
  let blade = mix(shaderUniforms.rootColor, shaderUniforms.tipColor, input.uv.y);
  return vec4<f32>(blade * (shaderUniforms.ambientColor + shaderUniforms.mainLightColor * (lambert * 0.6 + 0.4)), 1.0);
}

// A static bulge: the `displace` hook offsets the vertex before Babylon Lite's PBR template lights
// it, so the sphere below keeps direct lighting, shadow casting, IBL and tone mapping and still
// changes shape.
//
// **A `displace` hook cannot read `surfaceUniforms` or the clock, and cannot sample a texture.**
// Lite declares a plugin's uniforms and samplers with fragment-stage visibility only and gives a
// plugin no vertex helper-function channel at all, so the body is inlined into Lite's own vertex
// entry point and `@ignifx/core` refuses a body that reaches for either (IGX-0723). Wind and waves
// therefore need a full `"shader"` material — which is what the three files beside this one are.
// The offset here is a pure function of the vertex's own position and normal.
//
// `displace` declares the furthest the hook moves a vertex, in metres. The engine widens the
// sphere's bounds by it, so the directional shadow map, which is fitted to its casters' bounds,
// still covers the lobes; without it the lobes' shadow is cut off at the undisplaced silhouette.
// @ignifx surface
// @ignifx displace 0.22

fn displace(in: DisplaceInput) -> vec3<f32> {
  // Six lobes around the equator, tapering to nothing at the poles: a fixed shape, not an animation.
  // The taper reads the normal, which reaches ±1 exactly at the poles whatever the sphere's size.
  let lat = 1.0 - abs(in.normal.y);
  let lobes = sin(atan2(in.position.z, in.position.x) * 6.0) * 0.5 + 0.5;
  return in.normal * (lobes * lat * 0.22);
}
