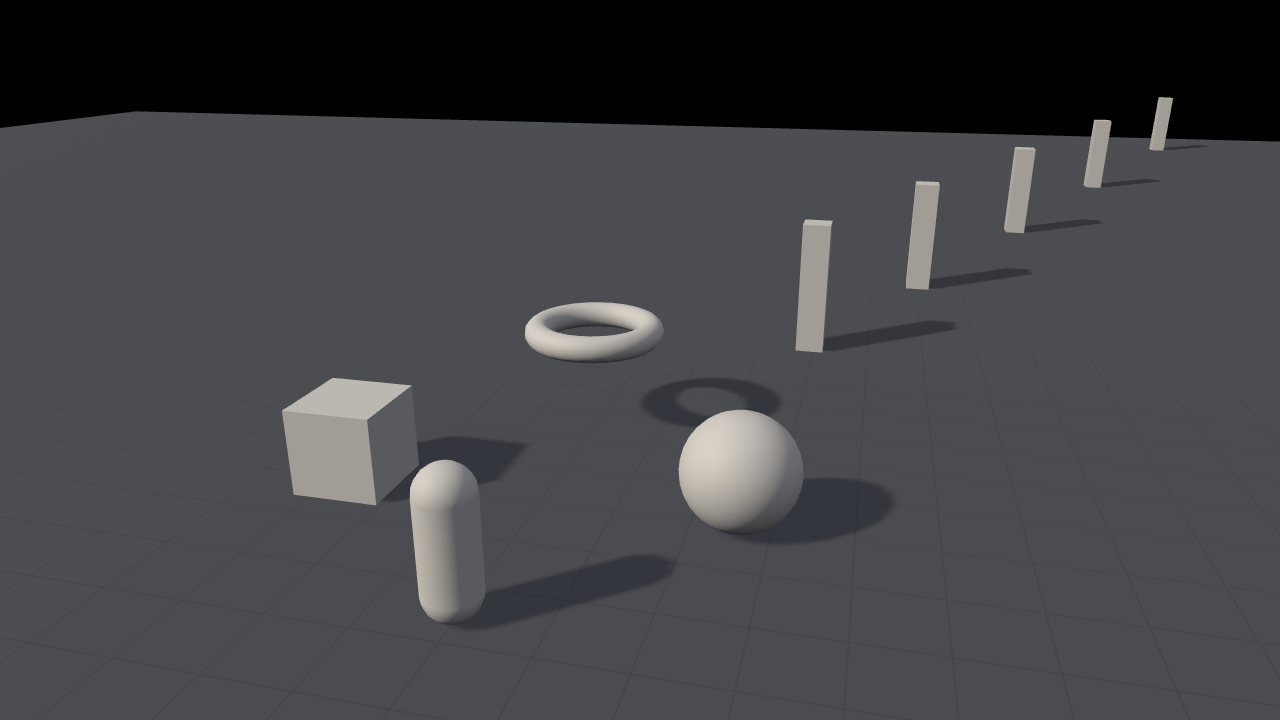

Shadows

/** * Rebuild the shadow generator to apply settings other than the live `shadows.enabled` flag. * Technique changes require a page reload because scene material layouts depend on the technique; * a new generator alone would bind an incompatible texture. Select it through `?technique=`. */import { Light, Script, SHADOW_TECHNIQUES, u32 } from "ignifx";import type { ScriptCallbacks, ShadowTechniqueName } from "ignifx";/** The query parameter the technique is carried in, so a reload keeps it. */const TECHNIQUE_PARAM = "technique";/** * The shadow technique this page load was asked for. * * @param fallback - The technique to use when the query names none, or names one Lite has not got. * @returns The technique. * * @example * ```ts * light.shadows.technique = readTechnique("pcf"); * ``` */export function readTechnique(fallback: ShadowTechniqueName): ShadowTechniqueName {  const asked = new URLSearchParams(window.location.search).get(TECHNIQUE_PARAM);  return SHADOW_TECHNIQUES.find((name: ShadowTechniqueName) => name === asked) ?? fallback;}/** * Reloads the frame with a different shadow technique, which is the only way to change one. * * @remarks * The module comment says why. The rest of the query is kept, so a capture opened at * `?static=1&nopanel=1&seed=1` stays a capture. * * @param technique - The technique to load with. * * @example * ```ts * select("Technique", labels, { value: label, change: () => { loadWithTechnique("esm"); } }); * ``` */export function loadWithTechnique(technique: ShadowTechniqueName): void {  const url = new URL(window.location.href);  url.searchParams.set(TECHNIQUE_PARAM, technique);  window.location.assign(url.toString());}/** * Re-attaches its light's shadow generator, which is the only way a changed shadow setting lands. * * @remarks * Put it on the light's own entity; it finds the `Light` itself. Every panel row that writes into * `shadows` calls {@link ShadowRebuild.request}, and the script then waits `quietFrames` frames * with no further request before it drops the generator — so dragging a slider costs one rebuild at * the end of the drag rather than one per pointer event, which matters when the map is 4096 texels * of depth texture. The rebuild itself takes two frames: `enabled = false` in the first, which is * what makes `Light.sync` release the generator, and `enabled = true` in the second, which builds a * new one from whatever the record now says. * * @example * ```ts * const rebuild = lightEntity.addComponent(ShadowRebuild); * light.shadows.mapSize = 2048; * rebuild.request(); * ``` */export class ShadowRebuild extends Script.define({ quietFrames: u32(8) }) implements ScriptCallbacks {  /** The namespaced registration id. */  static typeId = "shadows/ShadowRebuild";  #light: Light | null = null;  /** Frames left to wait before dropping the generator; `-1` when nothing is pending. */  #countdown = -1;  /** Whether the next frame should build the new generator. */  #isReattaching = false;  /** Whether the visitor wants shadows at all; a rebuild must not switch them back on. */  #isCasting = true;  /** How many generators have been built since the page loaded. */  #rebuilds = 0;  /**   * How many shadow generators this light has built, which is the number the panel reports.   *   * @returns The count, starting at zero for the one the scene was authored with.   */  get rebuilds(): number {    return this.#rebuilds;  }  /** Finds the light this script rebuilds the generator of. */  awake(): void {    this.#light = this.entity.getComponent(Light);  }  /** Asks for a rebuild once the panel has stopped changing things. */  request(): void {    this.#countdown = this.quietFrames;  }  /**   * Switches casting on or off, which is the one shadow field that *is* live.   *   * @param casting - Whether the light should cast.   */  setCasting(casting: boolean): void {    this.#isCasting = casting;    this.#countdown = -1;    this.#isReattaching = false;    const light = this.#light;    if (light === null) {      return;    }    // Switching casting back on builds a fresh generator, so it counts as a rebuild.    if (casting && !light.shadows.enabled) {      this.#rebuilds += 1;    }    light.shadows.enabled = casting;  }  /** Runs the two-frame rebuild, once the requests have gone quiet. */  update(): void {    const light = this.#light;    if (light === null || !this.#isCasting) {      return;    }    if (this.#isReattaching) {      this.#isReattaching = false;      light.shadows.enabled = true;      this.#rebuilds += 1;      return;    }    if (this.#countdown < 0) {      return;    }    this.#countdown -= 1;    if (this.#countdown < 0) {      light.shadows.enabled = false;      this.#isReattaching = true;    }  }}

/** * Everything in `shadows` that is not a shadow setting: the casters, the receding pillars, the * script that turns the rig, and the numbers the shot is composed with. * * @remarks * Split out for the reason `pbr-model/shot.ts` is: what a reader wants from `main.ts` is the shadow * record and what each of its fields does. The one part of this example that *is* a lesson about * the engine has its own file, `rebuild.ts`. */import { createMaterialAsset, f32, MeshAsset, MeshRenderer, pbrMaterialDefinition, Script } from "ignifx";import { createGridGround } from "../_kit/stage.ts";import type { App, AssetHandle, ColorLike, Entity, ScriptCallbacks } from "ignifx";/** Where the camera looks, between the orbiting casters and the receding pillars. */export const FOCUS = { x: 0.7, y: 1.1, z: 2.6 } as const;/** The one light that casts: a warm sun from the front upper left. */export const SUN = {  color: { r: 1, g: 0.945, b: 0.839, a: 1 },  intensity: 2.6,  at: { x: -5.5, y: 7, z: -2.5 },} as const;/** A soft, cool fill so the shadow side is readable without washing the shadow out. */export const FILL = { color: { r: 0.576, g: 0.706, b: 1, a: 1 }, intensity: 0.32 } as const;/** * The shadow settings the example opens on. * * @remarks * `bias` is per technique, because the three read it in different units and a figure tuned for * one stripes another; each was found by sweeping it on a real GPU and taking the smallest that * opens with no acne on the turntable's casters, so the acne the Bias sliders show is one the * visitor makes. * * - **PCF** compares depths directly and has the normal offset as well, so 5e-5 is enough. * - **CSM** has no normal offset and offsets each cascade by half the bias of its own depth range, *   so it needs eighty times as much — and `maxDistance` is 60 metres rather than Lite's default *   (the camera's far plane, 400) because four cascades spread over 400 metres stripe every caster *   at any bias that leaves the shadows attached. Sixty still reaches past the farthest pillar. * - **ESM** compares exponentials of depth, so its bias is a different kind of number again, and a *   trade rather than a cure: below about 0.02 every caster shadows its own lit side grey, and *   above 0.03 the shadows on the floor fade. That fade is ESM's light bleeding, and it is why PCF *   is the default. * * `darkness` is Lite's field, and it is backwards from its name: 0 is a black shadow and 1 is no * shadow at all. The panel shows it the other way up, as a strength. */export const SHADOWS = {  technique: "pcf",  mapSize: 1024,  bias: { pcf: 0.00005, esm: 0.025, csm: 0.004 },  normalBias: 0.02,  darkness: 0.12,  cascades: 4,  maxDistance: 60,} as const;/** * The Depth bias slider's track for each technique: from zero, where every technique stripes, to * where its shadows have plainly let go of the casters (PCF, CSM) or faded out (ESM), in steps * that land on the opening figure in {@link SHADOWS}. Measured on a real GPU, like the figures. */export const BIAS_TRACKS = {  pcf: { max: 0.0003, step: 0.00001 },  esm: { max: 0.06, step: 0.001 },  csm: { max: 0.08, step: 0.0005 },} as const;/** How fast the casters turn when the page loads, in degrees per second. */export const CASTER_SPIN = 22;/** The map sizes the panel offers, as the labels it shows them under. */export const MAP_SIZES: Readonly<Record<string, number>> = { "512": 512, "1024": 1024, "2048": 2048, "4096": 4096 };/** * The shadow techniques, by the label the panel shows; the values are `SHADOW_TECHNIQUES`. * * @remarks * PCF filters several taps of a depth map and gives a defined contact shadow; ESM stores an * exponential of depth and is blurred by construction, which is cheaper than widening a PCF kernel; * CSM splits the view into up to four depth slices so a distant shadow keeps its texels. A **spot** * light ignores all of this and always uses PCF, the only generator Lite gives it. */export const TECHNIQUES: Readonly<Record<string, "csm" | "esm" | "pcf">> = {  PCF: "pcf",  ESM: "esm",  "CSM (cascades)": "csm",};/** * The label {@link TECHNIQUES} shows one technique under. * * @param technique - The engine's own name for it. * @returns The panel's label, or the first one when nothing matches. */export function labelFor(technique: string): string {  return Object.keys(TECHNIQUES).find((label: string) => TECHNIQUES[label] === technique) ?? "PCF";}/** The colour the casters and pillars are drawn in. */const CASTER_COLOR: ColorLike = { r: 0.82, g: 0.83, b: 0.86, a: 1 };/** How far the casters orbit from the turntable's centre, in metres. */const ORBIT_RADIUS = 2.6;/** Where the pillars stand along +Z, in metres: near, then receding away from the camera. */const PILLAR_DISTANCES: readonly number[] = Object.freeze([7, 12, 19, 28, 40]);/** How far sideways a pillar stands for each metre it recedes. */const PILLAR_DRIFT = 0.42;/** How tall a pillar is, in metres. */const PILLAR_HEIGHT = 2.4;/** A point in metres, as the kit's options and `createEntity` take one. */interface Point3 {  /** Metres along X. */  readonly x: number;  /** Metres along Y. */  readonly y: number;  /** Metres along Z. */  readonly z: number;}/** * Writes a slider's value as a distance, and zero as what zero means. * * @param value - Metres. * @returns The text for the slider's value cell. */export function metresOrDefault(value: number): string {  return value === 0 ? "Lite's default" : `${String(value)} m`;}/** * Writes a bias slider's value, which is small enough to need its exponent. * * @param value - The bias, in Lite's depth units. * @returns The text for the slider's value cell. */export function exponential(value: number): string {  return value === 0 ? "0" : value.toExponential(1);}/** Turns its entity about world Y, in degrees per second. */export class Turntable extends Script.define({ speed: f32(0) }) implements ScriptCallbacks {  /** The namespaced registration id. */  static typeId = "shadows/Turntable";  /** Reused so the per-frame path allocates nothing (coding standards §7). */  readonly #step = { x: 0, y: 0, z: 0 };  /**   * Advances the rotation.   *   * @param dt - Seconds since the previous frame, already scaled by `time.timeScale`. Under   * `?static=1` the scale is zero, so the casters hold the pose they were authored at.   */  update(dt: number): void {    this.#step.y = this.speed * dt;    this.transform.rotate(this.#step);  }}/** * Builds the floor, the turning casters and the receding pillars. * * @remarks * Two kinds of caster, for two kinds of question. The four shapes on the turntable are close to the * camera and always moving, which is where the technique, the map size and the biases show: a * sphere's contact shadow, a torus shadowing itself, and the acne a map stripes across a curved * surface when the depth bias is pulled to zero. The five pillars recede to forty metres, which is * where the cascade count and the shadow distance show — turn `maxDistance` down and the far * pillars lose their shadows one by one. * * @param app - The app the entities and assets belong to. * @returns The turntable entity, so the caller can attach {@link Turntable} to it. * * @example * ```ts * const casters = await createCasters(app); * casters.addComponent(Turntable, { speed: CASTER_SPIN }); * ``` */export async function createCasters(app: App): Promise<Entity> {  // The fade starts past the farthest the orbit can pull back, so the farthest pillar is always  // clear of it, and the grid grows until its edge is never in sight.  await createGridGround(app, { fade: true });  const chalk = createMaterialAsset(    app,    pbrMaterialDefinition({      name: "shadows/chalk",      baseColor: CASTER_COLOR,      metallic: 0,      roughness: 0.62,      environmentIntensity: 0,    }),    [],  );  const place = (name: string, mesh: AssetHandle<MeshAsset>, at: Point3, parent?: Entity): Entity => {    const position = { x: at.x, y: at.y, z: at.z };    const entity =      parent === undefined        ? app.world.createEntity(name, { position })        : app.world.createEntity(name, { parent, position });    entity.addComponent(MeshRenderer, { mesh, materials: [chalk], castShadows: true, receiveShadows: true });    return entity;  };  const turntable = app.world.createEntity("Casters");  const r = ORBIT_RADIUS;  // A sphere with few segments on purpose: shadow acne is a facet artefact, and sixteen segments is  // where a 1024-texel map with no normal bias shows it plainly.  place("Sphere", MeshAsset.sphere(app, { diameter: 1.5, segments: 16 }), { x: r, y: 0.75, z: 0 }, turntable);  const torus = MeshAsset.torus(app, { diameter: 1.7, thickness: 0.38, tessellation: 28 });  place("Torus", torus, { x: 0, y: 1.5, z: r }, turntable);  place("Box", MeshAsset.box(app, { size: 1.2 }), { x: -r, y: 0.6, z: 0 }, turntable);  const capsule = MeshAsset.capsule(app, { height: 1.8, radius: 0.34, tessellation: 20 });  place("Capsule", capsule, { x: 0, y: 0.9, z: -r }, turntable);  // The pillars are separate entities, not children of the turntable: what they are for is depth,  // and a pillar that moved would take its shadow's distance with it. They recede to the left, away  // from the parameter panel.  const pillar = MeshAsset.box(app, { width: 0.5, height: PILLAR_HEIGHT, depth: 0.5 });  for (const distance of PILLAR_DISTANCES) {    place("Pillar", pillar, { x: -distance * PILLAR_DRIFT, y: PILLAR_HEIGHT / 2, z: distance });  }  return turntable;}
