Picking

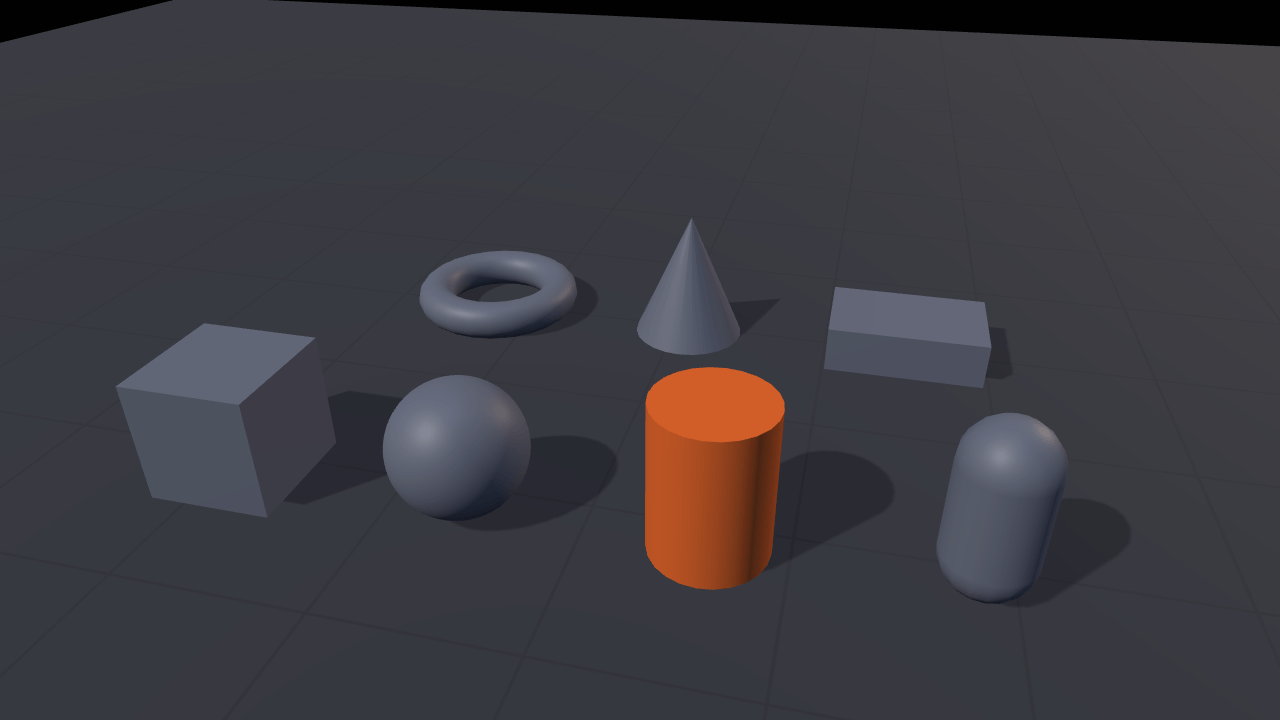

/** * The scene `picking` picks in: the seven shapes, their two materials, and the material swap that * shows which one was hit. * * @remarks * A separate file for the reason `pbr-model/shot.ts` is: none of it is a lesson about picking. * `main.ts` is then the two pick calls, the click that triggers them and the readouts that compare * them, which is all a reader came for. * * Every mesh is built in code, so the example fetches nothing and the whole scene is reproducible * from the numbers below. Two rows rather than one, and seven shapes rather than three, because * the comparison only means something when a click can miss: the gaps are where both paths answer * `null`, and the torus has a hole a bounding box would fill and neither of these paths does. */import { createMaterialAsset, MeshAsset, MeshRenderer, pbrMaterialDefinition } from "ignifx";import type { App, AssetHandle, ColorLike, Entity } from "ignifx";/** Where one shape stands, and which mesh it is. */interface Shape {  /** The entity's name, which is what the readouts show when it is hit. */  readonly name: string;  /** Metres along X from the scene's centre. */  readonly x: number;  /** How high the origin sits so the shape rests on the ground, in metres. */  readonly y: number;  /** Metres along Z; negative is towards the camera at a yaw of zero. */  readonly z: number;  /**   * Builds the mesh.   *   * @param app - The app the mesh belongs to.   * @returns The handle, with one holder — the renderer that is about to take it.   */  readonly mesh: (app: App) => AssetHandle<MeshAsset>;}/** The colour a shape is drawn in until it is picked. */const IDLE_COLOR: ColorLike = { r: 0.42, g: 0.45, b: 0.52, a: 1 };/** The colour the picked shape is drawn in: the site's ember, so a hit is unmistakable. */const PICKED_COLOR: ColorLike = { r: 0.93, g: 0.42, b: 0.16, a: 1 };/** The near-black the frame is cleared to, matching the site's dark background. */export const CLEAR_COLOR: ColorLike = { r: 0.043, g: 0.059, b: 0.094, a: 1 };/** The opening shot: high enough to see both rows and the gaps between them. */export const SHOT = { fov: 42, yaw: 14, pitch: 30, distance: 6.2, target: { x: 0, y: 0.28, z: 0 } } as const;/** The scene, in the order it is built. */const SHAPES: readonly Shape[] = [  { name: "Box", x: -1.85, y: 0.33, z: -1.15, mesh: (app: App) => MeshAsset.box(app, { size: 0.66 }) },  { name: "Sphere", x: -0.62, y: 0.35, z: -1.15, mesh: (app: App) => MeshAsset.sphere(app, { diameter: 0.7 }) },  {    name: "Cylinder",    x: 0.62,    y: 0.4,    z: -1.15,    mesh: (app: App) => MeshAsset.cylinder(app, { height: 0.8, diameter: 0.6, tessellation: 24 }),  },  {    name: "Capsule",    x: 1.85,    y: 0.45,    z: -1.15,    mesh: (app: App) => MeshAsset.capsule(app, { height: 0.9, radius: 0.22, tessellation: 16 }),  },  {    name: "Torus",    x: -1.25,    y: 0.12,    z: 0.95,    mesh: (app: App) => MeshAsset.torus(app, { diameter: 0.85, thickness: 0.24, tessellation: 24 }),  },  {    name: "Cone",    // A cone is a cylinder with one end closed to a point; ignifx has no separate factory.    x: 0.1,    y: 0.4,    z: 0.95,    mesh: (app: App) => MeshAsset.cylinder(app, { height: 0.8, diameterTop: 0, diameterBottom: 0.7 }),  },  {    name: "Slab",    x: 1.5,    y: 0.14,    z: 0.95,    mesh: (app: App) => MeshAsset.box(app, { width: 0.95, height: 0.28, depth: 0.62 }),  },];/** The built shapes, and the two things `main.ts` needs from them. */export interface PickableScene {  /** How many shapes there are, for the panel's readout. */  readonly count: number;  /** The shape the example opens picked, so a capture shows an answer; `null` if it is missing. */  readonly opening: Entity | null;  /**   * Draws one shape as the picked one and the rest as they were.   *   * @param entity - What a pick found, or `null` to clear the highlight.   */  readonly highlight: (entity: Entity | null) => void;}/** * Builds the shapes and the highlight. * * @remarks * The highlight is a material swap and nothing else. `MeshRenderer.materials` is a plain array of * handles, assigning it is the whole change, and it is on screen the next frame — no second pass, * no outline shader, no per-entity state to keep in step. * * @param app - The app the entities and the assets belong to. * @returns The scene's count and its highlight function. * * @example * ```ts * const scene = createPickableScene(app); * scene.highlight(hit?.entity ?? null); * ``` */export function createPickableScene(app: App): PickableScene {  const idle = createMaterialAsset(    app,    pbrMaterialDefinition({ name: "picking/idle", baseColor: IDLE_COLOR, metallic: 0.1, roughness: 0.55 }),    [],  );  const hot = createMaterialAsset(    app,    pbrMaterialDefinition({ name: "picking/picked", baseColor: PICKED_COLOR, metallic: 0.1, roughness: 0.35 }),    [],  );  const renderers = new Map<Entity, MeshRenderer>();  for (const shape of SHAPES) {    const entity = app.world.createEntity(shape.name);    entity.transform.localPosition.set(shape.x, shape.y, shape.z);    renderers.set(      entity,      entity.addComponent(MeshRenderer, { mesh: shape.mesh(app), materials: [idle], castShadows: true }),    );  }  let selected: Entity | null = null;  // The cylinder: middle of the front row, and the tallest thing near the frame's centre.  const opening = [...renderers.keys()].find((entity: Entity): boolean => entity.name === "Cylinder");  return {    count: renderers.size,    opening: opening ?? null,    highlight(entity: Entity | null): void {      const previous = selected === null ? undefined : renderers.get(selected);      if (previous !== undefined) {        previous.materials = [idle];      }      selected = entity;      const next = entity === null ? undefined : renderers.get(entity);      if (next !== undefined) {        next.materials = [hot];      }    },  };}

/** * The click: an action map, and the `Script` that turns a press-and-release on the canvas into one * pick. * * @remarks * A script on `@ignifx/input` actions rather than a DOM listener, because that is what a game * writes: the same class works with a mouse, with a finger and with a gamepad-driven cursor, and * `<Pointer>/position` already reports **backing-store pixels**, which is the space both pick * calls take. A DOM `pointerup` would have to be multiplied by the device pixel ratio first. * * Two details are what make it feel right rather than nearly right. `app.input.uiHasPointer` is * checked on the press, so a drag that starts on the parameter panel never picks. And the press * position is remembered, so the orbit camera's own gesture — a drag across the canvas — is not * read as a click on whatever happens to be under the release. */import { Script } from "ignifx";import type { InputAction, InputActionsInput, ScriptCallbacks } from "ignifx";/** The action map this example loads. Its own map, so the orbit camera's is untouched. */export const PICK_ACTION_MAP = "Picking";/** How far the pointer may travel between press and release and still count as a click, in pixels. */export const CLICK_SLOP_PIXELS = 6;/** The two actions the click needs, as a document `app.input.loadActions` takes. */export const PICK_ACTIONS: InputActionsInput = {  maps: [    {      name: PICK_ACTION_MAP,      actions: [        { name: "pickPress", type: "button", bindings: [{ path: "<Pointer>/press" }] },        { name: "pickPosition", type: "vector2", bindings: [{ path: "<Pointer>/position" }] },      ],    },  ],};/** Runs both picks at one pixel. `main.ts` implements it; the script only calls it. */export interface Picker {  /**   * Picks the pixel twice and updates the readouts and the highlight.   *   * @param x - The backing-store pixel x, from the canvas's left edge.   * @param y - The backing-store pixel y, from the canvas's top edge.   */  pickAt(x: number, y: number): void;}/** * Picks on a click that did not drag. * * @example * ```ts * app.registerComponents([ClickToPick]); * app.world.createEntity("Pointer").addComponent(ClickToPick).picker = picker; * ``` */export class ClickToPick extends Script implements ScriptCallbacks {  /** The namespaced registration id. */  static typeId = "picking/ClickToPick";  /**   * What a click is handed to. Assigned in code rather than declared as a schema field, because a   * picker is a closure over the scene and not something a scene file could carry.   */  picker: Picker | null = null;  /** Where the pointer went down, in backing-store pixels. */  #pressX = 0;  /** Where the pointer went down, in backing-store pixels. */  #pressY = 0;  /** Whether the press in flight started on the canvas rather than on the parameter panel. */  #onCanvas = false;  /** The press action, resolved once in `start` rather than looked up by name every frame. */  #press: InputAction | null = null;  /** The pointer-position action, resolved once in `start`. */  #at: InputAction | null = null;  /** Resolves the two actions; `main.ts` loads their map before the app starts. */  start(): void {    this.#press = this.app.input.actions.find("pickPress");    this.#at = this.app.input.actions.find("pickPosition");  }  /** Reads the frame's pointer state and picks on a release that stayed put. */  update(): void {    const press = this.#press;    const at = this.#at;    if (press === null || at === null) {      return;    }    if (press.wasPressedThisFrame) {      this.#pressX = at.vector.x;      this.#pressY = at.vector.y;      this.#onCanvas = !this.app.input.uiHasPointer;    }    if (!press.wasReleasedThisFrame || !this.#onCanvas) {      return;    }    this.#onCanvas = false;    if (Math.hypot(at.vector.x - this.#pressX, at.vector.y - this.#pressY) <= CLICK_SLOP_PIXELS) {      this.picker?.pickAt(at.vector.x, at.vector.y);    }  }}
