Physically based rendering
- Mouse
- Touch
- Gamepad

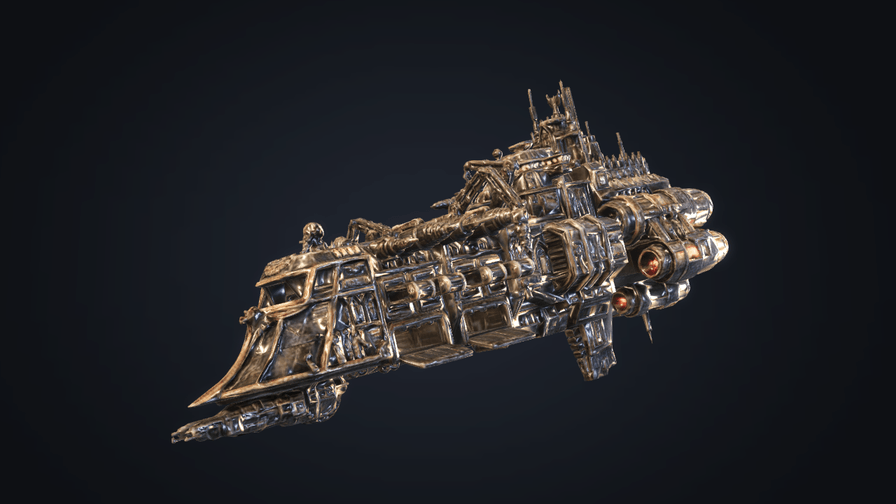

The ignifx ship, banked in flight: a glTF model with physically based metal, lit by a prefiltered environment probe, then bloom, anti-aliasing and ACES tone mapping as a post-process stack. This is the render path every 3D ignifx game uses, and the parameters on the right are the ones a game puts in its settings screen. `shot.ts` beside it holds the composition — the lens, the pose, the grading — so `main.ts` is only the engine.
WebGPU: checking…See browser support
Try this
- Drag to orbit and scroll to zoom; the reflections on the hull follow the probe as you move.
- Switch the Model select to Corset: one assignment swaps a loaded glTF for another.
- Rotate the environment, or blur it: one number moves every reflection on the ship at once.
Show source
Source
import { Camera, Environment, MODEL_ASSET_TYPE, Model, PostProcessStack } from "ignifx";import { bootExample } from "../_kit/boot.ts";import { attachOrbit } from "../_kit/orbit.ts";import { bind, readout, select, slider, toggle } from "../_kit/panel.ts";import { createBackdrop, createStudioFloor, createStudioRig, loadEnvironment } from "../_kit/stage.ts";import { CURVES, GROUND, SHOT, START_CURVE, START_SUBJECT, SUBJECT_RADIUS, SUBJECTS } from "./shot.ts";import type { AssetHandle, ModelAsset } from "ignifx";/** * The render path every 3D ignifx game uses: a glTF model with physically based materials, * image-based lighting from a prefiltered environment, and bloom over ACES tone mapping. * * The order of the steps is the lesson. Build the cheap parts; `load` every asset and **await it * before `app.start()`**, where a completed load settles at once rather than waiting for a frame's * `PreUpdate`; attach the components that need it; then `app.start()`, and only then switch the * effects on — a bloom task recorded before the scene is registered samples the swapchain, which * WebGPU rejects. `bootExample` owns that last bit of timing, through `afterStart`. * * The composition — which model, where it stands, the lens, the grading, the floor and backdrop * tones — is `shot.ts`, next to this file and shown beside it on the example's page. Splitting it * out is what keeps this file about the engine: every number in it was measured against a rendered * candidate, and none of it is a lesson about ignifx. */bootExample({ title: "Physically based rendering", settings: { rendering: { clearColor: GROUND.clear, msaaSamples: 4, // Both features are read once, when `app.start()` registers the scene; asking afterwards is // `IGX-0704`. `postProcessing` is the one people forget — it renders the scene into an // offscreen target so an effect has something it is allowed to sample. Without it a // `PostProcessStack` logs `IGX-0710` and does nothing at all. features: { shadows: true, postProcessing: true }, }, time: { fixedDeltaTime: 1 / 60 }, }, async setup({ app, panel, afterStart }) { const start = SUBJECTS[START_SUBJECT] ?? { address: "", scale: 1, height: 0 }; const focus = { x: 0, y: start.height, z: 0 }; const eye = app.world.createEntity("Main Camera"); eye.addComponent(Camera, { near: 0.02, far: 600, fov: SHOT.fov }); // One `frame()` call sets the distance at which a sphere of this radius subtends the camera's // own field of view, times `padding`. const orbit = attachOrbit(app, eye, { yaw: SHOT.yaw, pitch: SHOT.pitch, minDistance: 0.6, maxDistance: 8, idleDegreesPerSecond: SHOT.idle, }); orbit.frame({ center: focus, radius: SUBJECT_RADIUS }, SHOT.padding); const rig = createStudioRig(app, { focus, keyIntensity: SHOT.key.intensity, keyPosition: SHOT.key.at, fillIntensity: SHOT.fill.intensity, fillPosition: SHOT.fill.at, fillColor: SHOT.fill.color, rimIntensity: SHOT.rim.intensity, rimPosition: SHOT.rim.at, }); rig.key.color = SHOT.key.color; rig.rim.color = SHOT.rim.color; const floor = createStudioFloor(app, { size: GROUND.floorSize, color: GROUND.floor }); // The two lamps that shape the subject are kept off the floor: their spill would pool behind it // and give the composition a second subject, and the backdrop is what the eye should find // there. `Light.exclude` is one assignment, matched on the entity, with no layer to set up. rig.rim.exclude = [floor.entity]; rig.fill.exclude = [floor.entity]; // The backdrop's pool of light is painted at the centre of its texture, and a sphere's `u` is // longitude — so turning the sphere is what puts the pool behind the subject instead of // wherever `u = 0` landed. The angle was found by sweeping it and looking, because which // meridian Lite's sphere calls `u = 0` is not something to depend on. const backdrop = await createBackdrop(app, { diameter: GROUND.backdropDiameter }); backdrop.entity.transform.localEulerAngles = { x: 0, y: SHOT.backdropYaw, z: 0 }; // Both loads are awaited before the loop runs, so neither needs a frame pumped to settle. The // `.env` also pulls the BRDF table Lite requires, from the `rendering.brdfLut` default address. const first: AssetHandle<ModelAsset> = app.assets.load(start.address, { type: MODEL_ASSET_TYPE }); const environment = loadEnvironment(app, "studio"); await Promise.all([first.promise, environment.promise]); // One `Environment` per world; a second logs `IGX-0705`. Its `imageProcessing` record is the // exposure/tone-mapping path the PBR shaders themselves compile, which is why changing the // curve recompiles a pipeline and changing the exposure is nearly free. `blur` is what stops a // roughness-mapped metal hull reading as chrome: a little softens the probe's softboxes into // reflections you can follow, and zero mirrors the room. const sky = app.world .createEntity("Environment") .addComponent(Environment, { environment, clearColor: GROUND.clear }); sky.imageProcessing.toneMapping = CURVES[START_CURVE] ?? "aces"; sky.imageProcessing.exposure = SHOT.exposure; sky.blur = SHOT.blur; const entity = app.world.createEntity("Subject"); const subject = entity.addComponent(Model, { castShadows: true, receiveShadows: false }); const handles = new Map<string, AssetHandle<ModelAsset>>([[START_SUBJECT, first]]); // Swapping a model is one assignment: `Model` compares the loaded asset with the one it // instantiated and rebuilds its subtree on the next sync. A handle asked for the first time is // still loading when it is assigned, so the new model appears on the frame its delivery lands // in — the asset lifetime, visible. const swap = (label: string): void => { const placement = SUBJECTS[label]; if (placement === undefined) { return; } const handle = handles.get(label) ?? app.assets.load<ModelAsset>(placement.address, { type: MODEL_ASSET_TYPE }); handles.set(label, handle); subject.model = handle; entity.transform.localPosition.set(0, placement.height, 0); entity.transform.localScale.set(placement.scale, placement.scale, placement.scale); entity.transform.localEulerAngles = placement.pose; // `active = false` hides, `destroy()` removes (`skills/ignifx/SKILL.md` gotcha 6): the floor // is switched, not rebuilt, so swapping back costs nothing. floor.entity.active = placement.floor; }; swap(START_SUBJECT); // The chain is built once and switched with `enabled`: a frame graph cannot have a task // removed. `afterStart` is when the effects go on; see the module comment. const post = eye.addComponent(PostProcessStack); post.bloom.threshold = SHOT.bloomThreshold; post.bloom.weight = SHOT.bloomWeight; post.bloom.kernel = SHOT.bloomKernel; post.smaa.threshold = 0.05; afterStart((): void => { post.bloom.enabled = true; post.smaa.enabled = true; }); panel({ title: "Physically based rendering", groups: [ { label: "Subject", controls: [select("Model", Object.keys(SUBJECTS), { value: START_SUBJECT, change: swap })], }, { label: "Grading", controls: [ slider("Exposure", { min: 0.2, max: 3, step: 0.05 }, bind(sky.imageProcessing, "exposure")), // Not `bind`: the panel shows the industry's spellings and the field takes the engine's. select("Tone mapping", Object.keys(CURVES), { value: START_CURVE, change: (label: string): void => { sky.imageProcessing.toneMapping = CURVES[label] ?? "none"; }, }), ], }, { label: "Environment", controls: [ // Rotating the probe moves every reflection at once: the cheapest lighting control a // game can offer, and blurring it is the second. slider("Rotation", { min: 0, max: 360, step: 1 }, bind(sky, "rotation")), slider("Blur", { min: 0, max: 1, step: 0.02 }, bind(sky, "blur")), ], }, { label: "Bloom", controls: [ // A literal binding, not `bind(post.bloom, "enabled")`: `bind` reads the value once, here, and // bloom is only switched on in `afterStart` — the toggle would render unchecked over a frame // that has bloom in it. toggle("Enabled", { value: true, change: (on: boolean): void => { post.bloom.enabled = on; }, }), slider("Threshold", { min: 0, max: 1.5, step: 0.02 }, bind(post.bloom, "threshold")), ], }, { label: "Frame", collapsed: true, controls: [ readout("Draw calls", (): string => String(app.renderer.drawCalls)), readout("Post-process tasks", (): string => String(post.taskCount)), ], }, ], }); },});/** * The composition: what `pbr-model` shows, where it stands, how it is graded, and what the frame is * cleared to. Everything a designer tunes, in one file, so `main.ts` is only about the engine. * * @remarks * Every number here was chosen against rendered candidates rather than guessed * (`website/plan/08-execution.md` §4.4), and several of them are measurements — the two subjects' * authored extents, the pose that puts the nose where the frame wants it, the lamp ratios, and the * bloom's cost in clipped pixels. The viewer page shows this file beside `main.ts`, which is the * point: it is the part a reader is most likely to want to change. Two numbers here are load * bearing outside it: `exposure` and `pitch`, which `_tools/make-backdrop-texture.ts` solves its * bytes and centres its pool of light for. */import type { ToneMappingCurve } from "ignifx";/** A rotation in degrees about each axis, as the engine's public API takes one. */export interface Euler { /** Pitch, in degrees. */ readonly x: number; /** Yaw, in degrees. */ readonly y: number; /** Roll, in degrees. */ readonly z: number;}/** One subject the Model select can show. */export interface Subject { /** The model's address, under the asset root the examples build points the plugin at. */ readonly address: string; /** The uniform scale the entity is drawn at. */ readonly scale: number; /** How high the entity's origin sits above the floor, in metres. */ readonly height: number; /** The pose the subject is placed in, in degrees. */ readonly pose: Euler; /** * Whether the studio floor is shown under this subject. The ship is key art — a ship in flight * has no floor, and any lit floor puts a horizon across a frame whose edges are meant to be * quiet — while the corset is a physical object that wants one to stand on. */ readonly floor: boolean;}/** * The subjects, by the label the panel shows. The ship is the mascot and the default; the corset is * here because swapping a model at runtime is one assignment, and that is worth showing. * * @remarks * The two are authored at wildly different scales, which is the normal state of borrowed art: the * ship spans 0.488 x 0.504 x 0.980 metres and needs none, the Khronos Corset spans * 0.0390 x 0.0578 x 0.0390 and needs 16, and `_tools/compress-model.ts` prints both extents on * every run. `height` floats the ship clear of the floor, so it reads as a ship rather than as a * model on a shelf. * * `pose` is the ship's attitude, and it is what makes a static mesh read as something in motion: * fourteen degrees of nose-down and eight of bank, with the hull turned fifteen degrees off the * camera's axis so the frame gets a front three-quarter — the nose out of the frame's lower left * and towards the viewer, the length of the hull running back up to the right, and the engines * highest. The ship's nose is its `-Z` end (measured: the cross-section tapers from 1,757 square * millimetres at `+Z` to 43 at `-Z`), and the pose is applied in Babylon's order, `Y * X * Z`, so * the three numbers were solved rather than swept: against this camera they put the nose 0.74 of a * unit to the left of the frame's centre, 0.15 down, and 0.65 towards the viewer — 49 degrees off * the camera's axis, which is what a three-quarter is — with the deck tipped 0.09 away, so the * frame gets a sliver of the belly. */export const SUBJECTS: Readonly<Record<string, Subject>> = { Ship: { address: "models/ignifx-ship.glb", scale: 1, height: 0.7, pose: { x: -14, y: 15, z: 8 }, floor: false }, Corset: { address: "models/corset.glb", scale: 16, height: 0.46, pose: { x: 0, y: 0, z: 0 }, floor: true },};/** The subject the example opens on, and the one every capture shows. */export const START_SUBJECT = "Ship";/** The radius of the sphere the camera frames, in metres. Both subjects fit inside it. */export const SUBJECT_RADIUS = 0.62;/** * The opening shot: the pose and the grading every capture is taken from — the viewer page opens on * it, the poster and the golden are it, and the first input moves away from all of it. * * @remarks * Key art, not a turntable. A long lens (26 degrees) flattens the perspective and lets the hull * fill the frame from further away; the camera sits *below* the ship's centre line and looks a * little upward (`pitch` is negative), which is what shows the profile and the belly rather than * the deck; `padding` crops into the bounding sphere, because a ship's silhouette is a long * diagonal and not a ball. `idle` is zero: a still is a still — the field is in `orbit.ts` for * anything that wants a turntable. * * The lighting is three lamps, all directional, so their positions are only directions and no * intensity falls off with distance: a warm key from the front upper left, a cooler fill from the * opposite side so a panel line has two edges, and a warm-orange rim from behind and to the right, * which is what burns the wing edges and the engine housings out of the dark. The ratios are * measured rather than conventional. The fill is 0.42 of the key rather than the usual third, * because the subject is dark, worn metal and a third left its shadow side unreadable at the size * a poster is seen at; the rim is 1.5 times the key rather than the two to three a product shot * would use, because at 2.4 times — rendered, compared side by side — it flared the whole upper * silhouette into one line and took the panel work with it. * * **The lamps are bright and the exposure is low, and that is deliberate.** Exposure multiplies * everything in the frame, the unlit backdrop included, so raising it to brighten the ship raises * the backdrop with it and the frame stops being key art. Raising the lamps instead brightens only * what they touch, which is why the ship can be the brightest thing in the frame by a wide margin. * The low exposure has a second benefit worth knowing before changing it: it leaves * `_tools/make-backdrop-texture.ts` a wide range of bytes to paint the vignette's falloff with — * that file solves its bytes for this number and says so. * * The bloom is small on purpose, and how small was measured rather than judged: at the threshold * and weight below, 1,485 pixels of a 1280x720 frame reach 250 or brighter, against 797 with * `bloomWeight` at zero. So the effect is 700 pixels — the glints on the engine housings, the rim * along the wing edges, and nothing else. A threshold above about 0.6 does nothing at all, because * it is compared against the *linear* offscreen target rather than the graded frame. */export const SHOT = { fov: 26, yaw: 35, pitch: -8, padding: 0.6, idle: 0, exposure: 0.8, blur: 0.08, /** The backdrop sphere's own yaw, which is what puts its pool of light behind the subject. */ backdropYaw: 54, /** The warm key, from the front upper left. */ key: { intensity: 24, at: { x: -0.56, y: 1.6, z: -2.34 }, color: { r: 1, g: 0.851, b: 0.659, a: 1 } }, /** The cooler directional fill, opposite the key at a third of its intensity. */ fill: { intensity: 10, at: { x: 2.44, y: 0.8, z: 0 }, color: { r: 0.68, g: 0.79, b: 1, a: 1 } }, /** The rim, behind the ship and to the right, at two and a half times the key. */ rim: { intensity: 36, at: { x: -0.12, y: 1.1, z: 2.6 }, color: { r: 1, g: 0.72, b: 0.44, a: 1 } }, bloomThreshold: 0.35, bloomWeight: 0.24, bloomKernel: 48,} as const;/** * The floor and the backdrop, in the site's own dark tones (`02-design-system.md` §2.3: `--bg` is * `#0D1015`), because the page wraps the frame in its ember glow. * * @remarks * `clear` is what shows where the backdrop sphere does not reach, and it is the same near-black the * backdrop's own edges are painted to render as. `floor` — the corset's floor, not the ship's — * is dark and bluish on purpose: the floor is lit, the probe's neutral bounce desaturates it, and * what it has to do is disappear into the backdrop's near-black edges while still catching the * subject's shadow. The backdrop itself is a soft pool of light behind the subject falling to * near-black at the frame's edges: the engine has no vignette pass, so the falloff is painted into * `textures/backdrop.png` — which solves its own bytes for the tones it has to *render* as — and * turned to face the camera by `main.ts`. */export const GROUND = { clear: { r: 0.008, g: 0.01, b: 0.016, a: 1 }, floor: { r: 0.004, g: 0.02, b: 0.075, a: 1 }, floorSize: 16, backdropDiameter: 20,} as const;/** * The tone-mapping curves, by the label the panel shows; the engine's own names are the lower-case * values (`TONE_MAPPING_NAMES`). ACES is what most engines call "filmic" and rolls a bright * highlight off instead of clipping it to white. */export const CURVES: Readonly<Record<string, ToneMappingCurve>> = { None: "none", Standard: "standard", ACES: "aces", Neutral: "neutral",};/** The label {@link CURVES} opens on. */export const START_CURVE = "ACES";
