/** * The stage the four shaders are shown on, and the table that says which uniforms each of them puts * on the panel. * * @remarks * A separate file for the reason `pbr-model/shot.ts` is: none of it is a lesson about custom * shaders. `main.ts` is then the four loads, the four materials, the select that swaps one onto the * mesh, and the sliders that write the files' own declared uniforms — which is all a reader came for. * * ## Why the uniform table is written out here * * A `.wgsl` file's `// @ignifx uniform` lines already carry a range, a step and a tooltip, and * `ShaderAsset.declaration` hands them back at runtime — so a real inspector builds its rows from * the file and never repeats itself. The kit's panel takes a `label` and a `format` this * declaration has no field for, so the example writes the four rows it wants out longhand and keeps * the bounds the same as the file's. Reading the bounds off `shader.value.declaration.uniforms` * instead is three lines and is what an editor would do; it is not shown here because the point of * the example is the shader, not the panel. */import { backdropFade, backdropMaxDistance } from "../_kit/backdrop.ts";import { twoPlaces } from "../_kit/format.ts";import type { StudioFloorOptions } from "../_kit/stage.ts";import type { ColorLike } from "ignifx";/** The near-black the frame is cleared to; the backdrop sphere covers it everywhere. */export const CLEAR_COLOR: ColorLike = { r: 0.012, g: 0.015, b: 0.023, a: 1 };/** How wide the backdrop sphere is, in metres. */export const BACKDROP_DIAMETER = 18;/** The opening shot: the pose every capture is taken from. */export const SHOT = {  fov: 32,  yaw: 24,  pitch: 12,  distance: 3.1,  target: { x: 0, y: 0.62, z: 0 },  maxDistance: backdropMaxDistance(BACKDROP_DIAMETER),  exposure: 1,} as const;/** The subject: one sphere, its centre at the orbit's target. */export const SUBJECT = { diameter: 1.05, segments: 48, height: 0.62 } as const;/** The plain floor, which runs into the backdrop's wall rather than ending at a line. */export const FLOOR: StudioFloorOptions = { size: 26, color: CLEAR_COLOR, fade: backdropFade(BACKDROP_DIAMETER, 4) };/** Writes a value with no decimals. */const whole = (value: number): string => value.toFixed(0);/** Writes a value with one decimal. */const tenths = (value: number): string => value.toFixed(1);/** One panel row: a uniform the shader file declares, and how the panel should draw it. */export interface UniformRow {  /** The visible label. */  readonly label: string;  /** The uniform's name, exactly as the `.wgsl` file declared it. */  readonly name: string;  /** The lowest value; the same bound the file's `range(…)` states. */  readonly min: number;  /** The highest value. */  readonly max: number;  /** The increment; the same one the file's `step(…)` states. */  readonly step: number;  /** The value the material opens on; the file's own default unless the example overrides it. */  readonly value: number;  /** How the value cell writes the value. */  readonly format: (value: number) => string;}/** One shader on the select: the file to load, and the rows its uniforms get. */export interface ShaderRow {  /** The label on the select and on the panel group. */  readonly label: string;  /** The asset address, under `examples/assets/`. */  readonly address: string;  /** The sliders the panel offers for it. */  readonly uniforms: readonly UniformRow[];}/** The four shaders, in select order. The opening frame is {@link START_SHADER}. */export const SHADERS: readonly ShaderRow[] = [  {    label: "Dissolve",    address: "shaders/custom-shader/dissolve.wgsl",    uniforms: [      { label: "Progress", name: "progress", min: 0, max: 1, step: 0.01, value: 0.35, format: twoPlaces },      { label: "Edge width", name: "edgeWidth", min: 0.01, max: 0.3, step: 0.01, value: 0.09, format: twoPlaces },    ],  },  {    label: "Toon",    address: "shaders/custom-shader/toon.wgsl",    uniforms: [      { label: "Bands", name: "bands", min: 1, max: 8, step: 1, value: 3, format: whole },      { label: "Outline", name: "outline", min: 0, max: 0.8, step: 0.02, value: 0.28, format: twoPlaces },    ],  },  {    label: "Hologram",    address: "shaders/custom-shader/hologram.wgsl",    uniforms: [      { label: "Scan lines", name: "scanFrequency", min: 4, max: 60, step: 1, value: 14, format: whole },      { label: "Scan speed", name: "scanSpeed", min: 0, max: 3, step: 0.05, value: 0.6, format: twoPlaces },      { label: "Glow", name: "glow", min: 0.2, max: 4, step: 0.1, value: 1.4, format: tenths },    ],  },  {    label: "Force field",    address: "shaders/custom-shader/forcefield.wgsl",    uniforms: [      { label: "Cells", name: "cells", min: 3, max: 40, step: 1, value: 14, format: whole },      { label: "Pulse", name: "pulse", min: 0, max: 2, step: 0.05, value: 0.5, format: twoPlaces },    ],  },];/** Which of {@link SHADERS} the example opens on, and therefore what the poster shows. */export const START_SHADER = "Dissolve";

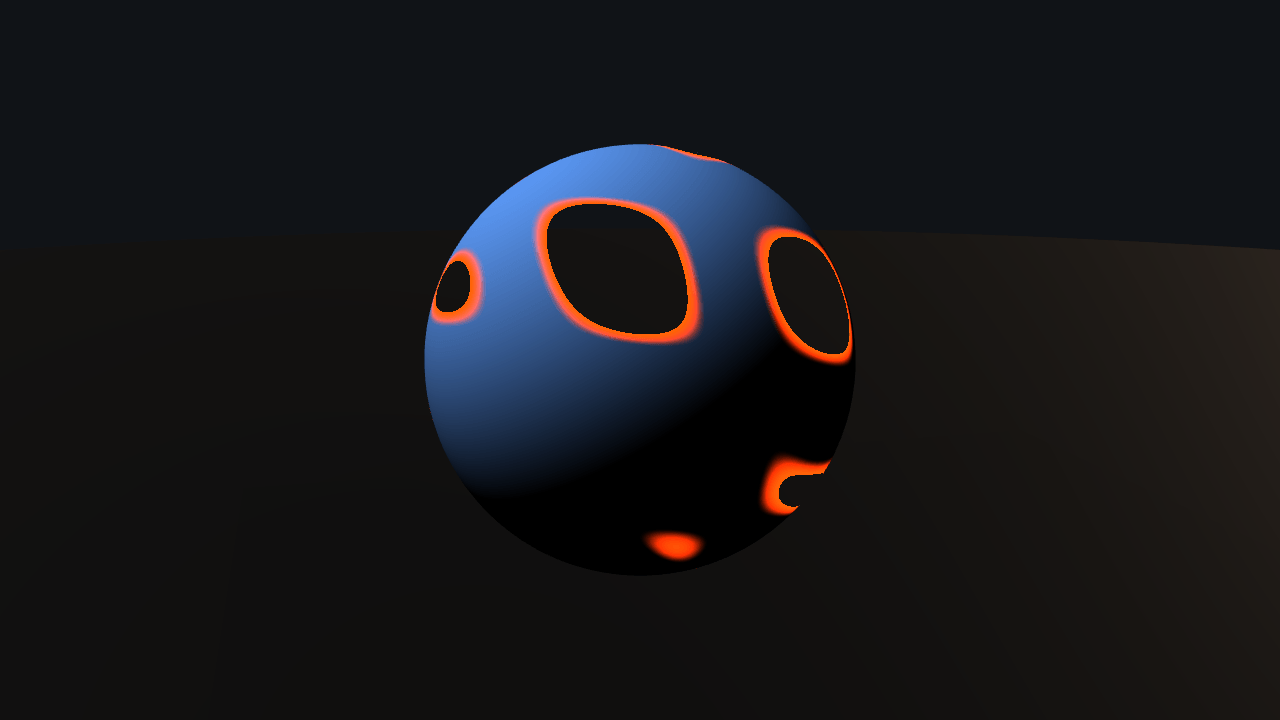

// Dissolve: discard where a noise field falls under `progress`, and burn the surviving edge.
// The field is three multiplied sine waves rather than a sampled texture, so the cut-out is
// procedural and the file needs no asset of its own.
// @ignifx shader
// @ignifx attributes position, normal
// @ignifx system world, worldViewProjection, mainLightDirection, mainLightColor, ambientColor
// @ignifx uniform baseColor: vec3<f32> = color(0.42, 0.55, 0.72)
// @ignifx uniform edgeColor: vec3<f32> = color(1.0, 0.48, 0.12)
// @ignifx uniform progress: f32 = 0.35 range(0, 1) step(0.01) tooltip("How much of the surface has burned away.")
// @ignifx uniform edgeWidth: f32 = 0.09 range(0.01, 0.3) step(0.01) tooltip("How wide the burning edge is.")
// @ignifx blend opaque cull back

struct VertexOutput {
  @builtin(position) position: vec4<f32>,
  @location(0) normal: vec3<f32>,
  @location(1) localPosition: vec3<f32>,
}

fn field(p: vec3<f32>) -> f32 {
  let waves = sin(p.x * 7.3 + p.y * 3.1) * sin(p.y * 8.7 + p.z * 2.3) * sin(p.z * 6.1 + p.x * 4.7);
  return 0.5 + 0.5 * waves;
}

@vertex fn mainVertex(input: VertexInput) -> VertexOutput {
  var out: VertexOutput;
  out.position = shaderSystem.worldViewProjection * vec4<f32>(input.position, 1.0);
  out.normal = normalize((shaderSystem.world * vec4<f32>(input.normal, 0.0)).xyz);
  out.localPosition = input.position;
  return out;
}

@fragment fn mainFragment(input: VertexOutput) -> @location(0) vec4<f32> {
  let noise = field(input.localPosition);
  if (noise < shaderUniforms.progress) { discard; }
  let lambert = clamp(dot(normalize(input.normal), -normalize(shaderUniforms.mainLightDirection)), 0.0, 1.0);
  let lit = shaderUniforms.baseColor * (shaderUniforms.ambientColor + shaderUniforms.mainLightColor * lambert);
  // The band just above the cut glows: `edgeColor` is used as an emitter, so it survives the lambert.
  let heat = 1.0 - smoothstep(shaderUniforms.progress, shaderUniforms.progress + shaderUniforms.edgeWidth, noise);
  return vec4<f32>(mix(lit, shaderUniforms.edgeColor * 2.0, heat), 1.0);
}

// Cel shading: the light term quantised into bands, plus a dark outline from the view angle.
// `mainLightDirection` and `ambientColor` are ignifx's, not Babylon Lite's, so they are read from
// `shaderUniforms` beside this file's own values.
// @ignifx shader
// @ignifx attributes position, normal
// @ignifx system world, worldViewProjection, cameraPosition, mainLightDirection, mainLightColor, ambientColor
// @ignifx uniform baseColor: vec3<f32> = color(0.86, 0.31, 0.24)
// @ignifx uniform bands: f32 = 3 range(1, 8) step(1) tooltip("How many steps the light is quantised into.")
// @ignifx uniform outline: f32 = 0.28 range(0, 0.8) step(0.02) tooltip("How wide the silhouette rim is.")
// @ignifx blend opaque cull back

struct VertexOutput {
  @builtin(position) position: vec4<f32>,
  @location(0) normal: vec3<f32>,
  @location(1) worldPosition: vec3<f32>,
}

@vertex fn mainVertex(input: VertexInput) -> VertexOutput {
  var out: VertexOutput;
  out.position = shaderSystem.worldViewProjection * vec4<f32>(input.position, 1.0);
  out.normal = normalize((shaderSystem.world * vec4<f32>(input.normal, 0.0)).xyz);
  out.worldPosition = (shaderSystem.world * vec4<f32>(input.position, 1.0)).xyz;
  return out;
}

@fragment fn mainFragment(input: VertexOutput) -> @location(0) vec4<f32> {
  let normal = normalize(input.normal);
  let toLight = -normalize(shaderUniforms.mainLightDirection);
  let steps = max(shaderUniforms.bands, 1.0);
  // `floor(x * n) / n` is the whole of cel shading: the smooth lambert ramp becomes n flat plateaus.
  let lambert = clamp(dot(normal, toLight), 0.0, 1.0);
  let stepped = floor(lambert * steps) / steps;
  let lit = shaderUniforms.baseColor * (shaderUniforms.ambientColor + shaderUniforms.mainLightColor * stepped);
  let toEye = normalize(shaderSystem.cameraPosition - input.worldPosition);
  // The silhouette, not a post-process edge filter: a fragment whose normal turns away from the eye
  // is on the rim of the shape, whatever is behind it.
  let rim = 1.0 - smoothstep(shaderUniforms.outline * 0.5, shaderUniforms.outline, abs(dot(normal, toEye)));
  return vec4<f32>(mix(lit, vec3<f32>(0.02, 0.02, 0.04), rim), 1.0);
}

// Hologram: horizontal scan lines that crawl with `time`, a fresnel edge, and additive blending so
// the floor shows through. `time` is ignifx's clock, not Babylon Lite's — Lite ships none — and it
// freezes under `app.pause()` and under the `?static=1` capture flag.
// @ignifx shader
// @ignifx attributes position, normal
// @ignifx system world, worldViewProjection, cameraPosition, time
// @ignifx uniform tint: vec3<f32> = color(0.29, 0.82, 1.0)
// @ignifx uniform scanFrequency: f32 = 14 range(4, 60) step(1) tooltip("Scan lines per metre of height.")
// @ignifx uniform scanSpeed: f32 = 0.6 range(0, 3) step(0.05) tooltip("How fast the lines crawl, metres a second.")
// @ignifx uniform glow: f32 = 1.4 range(0.2, 4) step(0.1) tooltip("Overall brightness of the projection.")
// @ignifx blend additive cull none depthWrite off

struct VertexOutput {
  @builtin(position) position: vec4<f32>,
  @location(0) normal: vec3<f32>,
  @location(1) worldPosition: vec3<f32>,
}

@vertex fn mainVertex(input: VertexInput) -> VertexOutput {
  var out: VertexOutput;
  out.position = shaderSystem.worldViewProjection * vec4<f32>(input.position, 1.0);
  out.normal = normalize((shaderSystem.world * vec4<f32>(input.normal, 0.0)).xyz);
  out.worldPosition = (shaderSystem.world * vec4<f32>(input.position, 1.0)).xyz;
  return out;
}

@fragment fn mainFragment(input: VertexOutput) -> @location(0) vec4<f32> {
  // One sine period per line, so `scanFrequency` is lines per metre.
  let height = input.worldPosition.y - shaderUniforms.time * shaderUniforms.scanSpeed;
  let scan = height * shaderUniforms.scanFrequency * 6.2831853;
  let lines = 0.35 + 0.65 * pow(0.5 + 0.5 * sin(scan), 4.0);
  let toEye = normalize(shaderSystem.cameraPosition - input.worldPosition);
  // A grazing fragment is where a real projection is brightest, so the fresnel term is added, not
  // multiplied: the silhouette burns and the front face stays readable.
  let fresnel = pow(1.0 - clamp(abs(dot(normalize(input.normal), toEye)), 0.0, 1.0), 2.5);
  let strength = (lines * 0.6 + fresnel * 1.2) * shaderUniforms.glow;
  // `blend additive` ignores the alpha channel, so the colour alone carries the brightness.
  return vec4<f32>(shaderUniforms.tint * strength, 1.0);
}

// Force field: a fresnel shell with a square lattice on it, drawn premultiplied so the shape reads as
// glass rather than as a flat additive glow. `blend premultiplied` is the mode Babylon Lite cannot
// name — its own `"alpha"` multiplies by alpha a second time — so ignifx supplies the blend state.
// @ignifx shader
// @ignifx attributes position, normal, uv
// @ignifx system world, worldViewProjection, cameraPosition, time
// @ignifx uniform tint: vec3<f32> = color(0.35, 0.66, 1.0)
// @ignifx uniform cells: f32 = 14 range(3, 40) step(1) tooltip("How many lattice cells fit across the shell.")
// @ignifx uniform pulse: f32 = 0.5 range(0, 2) step(0.05) tooltip("How hard the lattice breathes.")
// @ignifx blend premultiplied cull none depthWrite off

struct VertexOutput {
  @builtin(position) position: vec4<f32>,
  @location(0) normal: vec3<f32>,
  @location(1) worldPosition: vec3<f32>,
  @location(2) uv: vec2<f32>,
}

@vertex fn mainVertex(input: VertexInput) -> VertexOutput {
  var out: VertexOutput;
  out.position = shaderSystem.worldViewProjection * vec4<f32>(input.position, 1.0);
  out.normal = normalize((shaderSystem.world * vec4<f32>(input.normal, 0.0)).xyz);
  out.worldPosition = (shaderSystem.world * vec4<f32>(input.position, 1.0)).xyz;
  out.uv = input.uv;
  return out;
}

@fragment fn mainFragment(input: VertexOutput) -> @location(0) vec4<f32> {
  let grid = abs(fract(input.uv * shaderUniforms.cells) - vec2<f32>(0.5, 0.5));
  // `grid` is the distance from the cell's centre, so the lines are where either axis nears 0.5.
  let lattice = smoothstep(0.40, 0.47, max(grid.x, grid.y));
  let toEye = normalize(shaderSystem.cameraPosition - input.worldPosition);
  let fresnel = pow(1.0 - clamp(abs(dot(normalize(input.normal), toEye)), 0.0, 1.0), 2.0);
  let breathe = 1.0 + shaderUniforms.pulse * sin(shaderUniforms.time * 2.4);
  let alpha = clamp((fresnel * 0.85 + lattice * 0.35) * breathe, 0.0, 1.0);
  // Premultiplied: the colour is already multiplied by the coverage it is written with, which is
  // what lets the lattice and the rim share one draw without double-darkening the overlap.
  return vec4<f32>(shaderUniforms.tint * alpha * 1.6, alpha);
}
